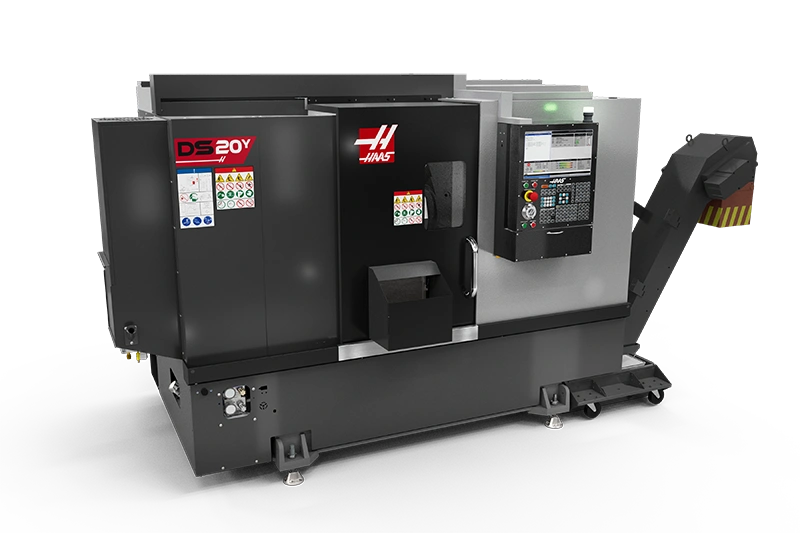

DS-20Y
The DS-20Y Y-axis turning center combines dual-spindle turning with Y axis, C axis, and live tooling to create a powerful “done-in-one” machining solution for any shop.
Standard Features
- 4000-rpm Spindle
- A2-5 Secondary-spindle, 6.5" Chuck, 5000 rpm
- 4000-rpm Live Tooling with 12-Station BMT65 Turret and C Axis
- 55-Gallon Coolant Tank
- Multi-Stage Coolant Pump
- Control Widescreen Monitor
- Ethernet Interface
- WiFi Connection for the Haas Control
Options
- 6000-rpm Speed Upgrade for Live Tooling
- 4000-rpm Live Tooling with 24-Station BMT65 Turret and C Axis
- Automatic Tool Presetter
- Belt-Type Chip Conveyor, Lathe
- Coolant Sanitizer
- Enclosure Exhaust System
- Chuck Air Blast
- Sub-Spindle Air Blast
- Parts Catcher
- Coolant Tank Oil Skimmer
Haas Tooling
- Bar Puller, 1.0" Round Shank x 1
- 15-Piece, Haas 42" Extruded Spindle Liner Kit, 2-1/2" External Diameter, 3/8" - 2-1/4" Bore Diameter, for Round Bar Stock x 1
- Liner Guide Adapter Kit, 2.50" (64mm), with 74mm Adapter Threads x 1
- WINNER'S CIRCLE 1-YEAR MEMBERSHIP
TODAY'S DS-20Y DEMO PART
Type of Part
Radial/Axial LT Demo.
Drill-Tap, Sub-spindle Handoff, and Bar Pull Operation
Material
6061 Aluminum
Cycle Time
10 Minutes
